1.25Gb/S 20KM Bidirectional Sfp Transceiver 1.25G SFP Optical Module

  • 1
  • 2
  • 3

Brand Name : YXFiber

Model Number : YXF-GE-B35S-20D, YXF-GE-B53S-20D

Certification : RoHS, ISO9001

Place of Origin : Hubei, China

MOQ : 1 Pair

Price : $10.00 - $12.00 / Pair

Payment Terms : Western Union, L/C, T/T

Supply Ability : 8000 Piece/Pieces per Day

Delivery Time : 1-3 working days

Packaging Details : 10pcs/ anti-static box.

Supply Voltage : 3.3V

Power : -9~3dBm

Data rate : 1.25Gbps

Wavelength : Tx1310nm/Rx1550nm, Tx1550nm/Rx1310nm

Transmission distance : 20km

Interface : BIDI SC

Fiber Type : SMF

DDMI : yes

Warranty : 1 years

Port : Wuhan

Selling Units : 1 Pair

Contact Now

Product Descripition

1.25Gb/S 20KM Bidirectional Sfp Transceiver 1.25G SFP Optical Module

SFP 1.25G 20km SFP Module BIDI SC DDM

Features :

1. Industry standard Small Form Pluggable (SFP) package.

2. Digital diagnostic monitor interface compliant with SFF-8472.

3. 1310nm FP/1550nm FP Laser and PIN receiver.

4. Very low EMI and excellent ESD protection

5. Power consumption less than 1.0W.

6. Hot-pluggable capability.

Specificatios:

Technical Parameters Descriptions Technical Parameters Descriptions
Model Number YXF-GE-B35S-20D/YXF-GE-B53S-20D Interface SC
Fiber type SMF Laser/Detector FP/PIN
Form Factor BIDI SFP DDM Yes
Data Rate 1.25G Output Power -3~-9dBm
Wavelength Tx1310nm/Rx1550nm, Tx1550nm/Rx1310nm Power Supply 3.3V
Distance 20KM Temperature 0~70°C
Sensitivity <-22.0dBm Certificate CE,ROHS,FCC,ISO9001,SGS
Selling Units 1 pair Warranty 1 Year

Advantages :

1. The transceiver is a low power, high performance, cost effective module supporting data-rate up to 1.25Gbps 20km transmission distance.

2. The low jitter and high sensitivity are extinguished advantages with 1310nm FP/1550nm DFB LD and PIN/TIA receiver.

3. The transceiver incorporates TX_DIS control, TX-FAULT and RX_LOS monitor functions. The devices are Class I laser safety compliant.

Equipment List

1.25Gb/S 20KM Bidirectional Sfp Transceiver 1.25G SFP Optical Module

Packaging & Shipping

1.25Gb/S 20KM Bidirectional Sfp Transceiver 1.25G SFP Optical Module

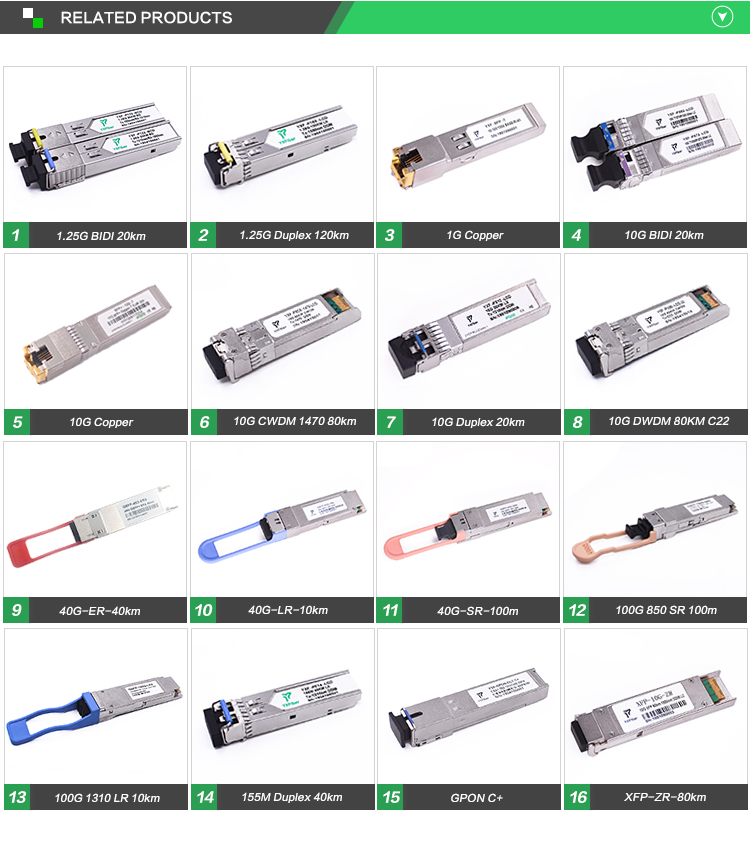

Related Products
